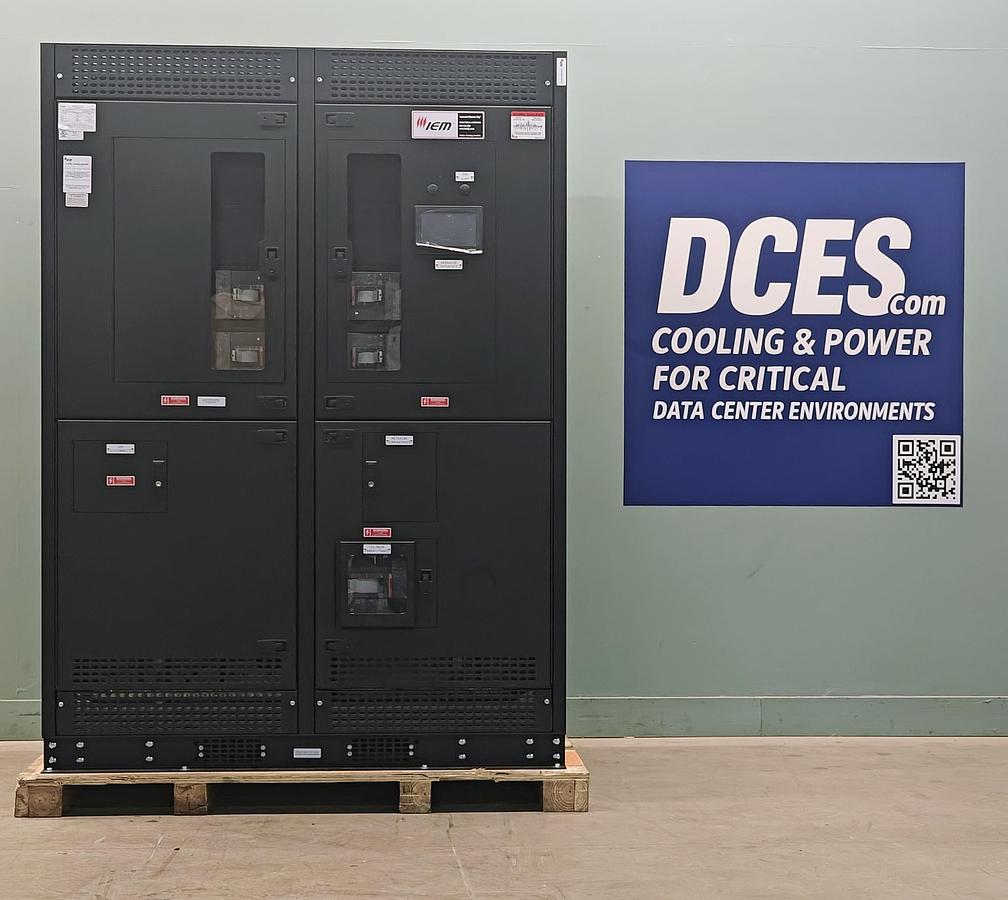

2026 IEM 500KVA Power Distribution Unit
2026 IEM 500KVA Power Distribution Unit
Location:Plano, TX
or
Looking for a similar model or alternate capacity? Call (972) 881-9009
Description
IEM’s Power Distribution Units (PDUs) are engineered to deliver reliable, high-capacity power from the critical distribution system to IT equipment on the server floor or to other load points within your data center. Built to support highdensity environments, IEM PDUs offer exceptional energy efficiency and are scalable to accommodate future growth.
Specifications
| Manufacturer | IEM |
| Model | PDU54SMAMDDYYBB-SXSXXX |
| Year | 2026 |
| Condition | New |
| Stock Number | 00014 |
| Specifications | - Input Voltage: 480VAC- Output Voltage: 208Y /120V, 415Y / 240V- Power Rating: 500kVA- Dimensions: 58”Wx48”Dx80”H- Distribution Breakers: 35 kA @ 415 VAC (All), 250AF (80% or 100% Rated), 400AF (80% or 100% Rated), 600AF (80% Rated)- Front access only required during operation- Local 7” touch-screen display- Revenue-grade main metering- K9 rated transformer with electrostatic shields- Neutral bus rated 200% rated current- Modbus TCP communications- Standard 150 kA surge protection with EMI/RFI filtering- UL & cUL listed - Optional IR inspection window*- Optional breaker status monitoring* * |
