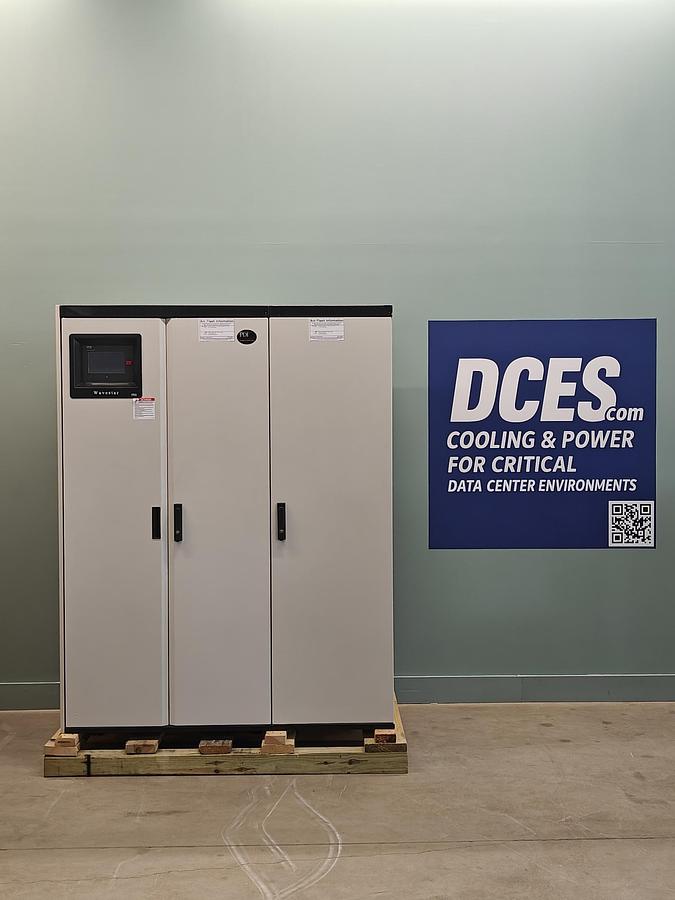

Eaton PDI PowerPak PDU

Eaton PDI PowerPak PDU

Location:Plano, TX

or
Looking for a similar model or alternate capacity? Call (972) 881-9009

Description

The Eaton PDI 300 kVA Power Distribution Unit is a floor-mounted power distribution solution designed to safely distribute conditioned power from a UPS to critical IT and facility loads. It combines a high-efficiency isolation transformer, branch circuit distribution, intelligent monitoring, and flexible expansion into a single cabinet. The platform supports transformer ratings up to 300 kVA and is intended for enterprise data centers and other high-availability environments

Specifications

ManufacturerEaton
ModelPP13-WSC-300
Year2017
ConditionUsed
Serial Number110-4643-08
Stock Number00015
SpecificationsRatings kVA rating 50-300 kVA Input 3-phase, 3-wire plus ground Input voltage @ 50 Hz: 415 or 380V @ 60 Hz: 600, 480 or 208V Output 3-phase, 4-wire plus ground Output voltage @ 50 Hz: 415/240or 380/220V @ 60 Hz: 600, 480 or 208/120V Features Copper or aluminum wound construction. Dual electrostatic shield – attenuates high frequency noise. Oversized netural conductor. Transverse mode noise protection. Accurate kW, power factor and THD measurement. True RMS metering. Operating Efficiency: DOE 2016 compliant. Listed to UL 1950, CSA certified. Modbus RTY communications, Modbus TCP/IP, SNMP. BCMS available as factory installed option. Enclosure NEMA 1 enclosure with removable front, side & rear panels. Removable front, side and rear panels. Intergrated two-point latch and vision panels. Flush-mounted door handle with integral locks. Advanced door catch assures positive closure. Operating conditiions Operating Tempature: ambient 0 to 40°C Storage Tempature: -10 to +40°C 50 Hz Operating Rage: 47-53 Hz 60 Hz Operating Range: 57-63 Hz Monitoring Standard monitor: PDI 7-inch color monitor (input/output monitoring). Options: Per circuit output monitoring. Communications: Serial RS-485 modbus. Thermal: Dual transformer thermal switches.
